Glass lifting is the process of safely moving and installing glass sheets or panels using specialized equipment. Since many industries use glass as a raw material and industrial component, it becomes crucial to handle it carefully, especially because glass is heavy, fragile, and can be dangerous if not handled properly.

Glass handling equipment helps speed up the process of moving heavy glass materials so that they are moved and installed quickly and precisely.

Using proper lifting tools prevents cracks and scratches on the glass, which helps keep the fragile material in perfect condition.

Glass lifting equipment can also be used to carry other materials, making them more reliable than regular lifts, ladders ,and cranes.

How is Glass Lifting Equipment Useful for Industrial Work?

Glass lifting equipment can be very important in industrial work because it allows for the safe and precise handling of large glass panels that would be difficult or dangerous to manage with regular lifts, ladders, or cranes.

Bailey Cranes is a veteran-owned small business based in Muskego, Wisconsin, which specializes in designing and manufacturing Mobile Elevating Work Platforms, including glass lifting equipment.

Bailey Cranes manufactures several variants of glass lifters, with advanced technical features that are built to handle fragile glass materials safely.

• The glass lifting equipment designed and manufactured by Bailey Cranes is made to provide better control and reach, making them ideal for placing glass in tight or elevated spaces without the risk of damage.
• Their compact design also allows access through narrow entry areas, increasing reliability in various job sites.
• This lifting equipment can carry a variety of materials, including metals, granite, quartz, building panels, and even concrete.
• Unlike standard machines, glass lifting equipment is specifically designed to protect the delicate surface of glass, preventing scratches or breaks during transport and installation.

Bailey Crane’s glass lifter machine will aid in a variety of industrial work, from elevation and installation to the transportation of glass in a secure manner.

Different Types of Glass Lifting Equipment

Most industries and companies need specialized equipment that can handle a large variety of materials, especially glass. Bailey Cranes offers several different types of glass lifting equipment with many advanced features:

1. Brandon 2000

The Brandon 2000 is a heavy glass lifting equipment that is built for the safe and efficient handling of heavy glass materials.

Specifications of Brandon 2,000

• Brandon 2000 has a lifting capacity of up to 2,000 pounds. Its telescoping boom and advanced steering system allow for better movement in tight spaces.
• Brandon 2000 is a reliable equipment because of its built-in safety system that monitors weight and load limits, offering operators full control during every lift.
• The equipment has a strong 24-Volt 7HP Electric Motor that can operate during long working hours.

Model Name Working Height Working WeightTechnical Features Brandon 2,000 6’- 6’’  or 198 cm3,900 lbs or 1,769 kgRear wheel steering of +/- 80°

2. Cantilever Glass Handling Lifter

The Cantilever Glass Handling Lifter by Bailey Cranes is a specialized glass handling equipment designed to move fragile glass materials.

Specifications of Cantilever Glass Handling Lifter

• It is built with a self-contained power unit and has three axes of rotation, which allows precise control and movement during lifting tasks.
• It has an 18-inch extension and 4-inch side shift, which provides added flexibility, making it easier to position the glass accurately.
• Also, with radio remote controls installed in the equipment, operators can manage the lifter from a safe distance, reducing the risk of damage or injury.

3. 2863 Glass Handler Lifter

The 2863 Glass Handler Lifter offered by Bailey Cranes is a reliable glass lifting equipment designed specifically for handling glass materials.

Specifications of 2863 Glass Handler Lifter

• The 2863 Glass Handler Lifter has a weight of 27,400 lbs and a floor loading of 163 lbs per square foot, which ensures stability during operations.
• It features a four-stage steel boom with a three-stage tower lift and a 50-inch side tilt carriage, offering flexible movement.
• The machine includes three steering modes—two-wheel, four-wheel, and crab. These modes help in the better movement of the machine in tight spaces.

Model Name Working Height Working WeightTechnical Features 2863 Glass Handler Lifter63 Ft or 19.202 metres4,500 Lbs or 2041.166 kilogramsThree types of steering modes, Two-Wheel/Four-Wheel and crab

4. Brandon 6 Mini Crane Glass Lifter

The Brandon 6 Mini Crane Glass Lifter is a highly advanced material handling equipment, designed for precision and safety.

Specifications of Brandon 6 Mini Crane Glass Lifter:

• It has a vertical reach of 24 feet and a horizontal reach of 14 feet, which helps in creating more flexibility than standard lifting equipment.
• This machine is equipped with a glass suction cup attachment and a 3-axis manipulator, making it ideal for lifting glass, metals, granite, quartz, building panels, and even concrete.
• It’s Woods Power Grip system ensures secure handling, and features like radio remote controls and walkie-talkie increases ease of use.

Model Name Working Height Working WeightTechnical Features Brandon 6 Mini Crane Glass Lifter24 Feet (7.33M) 1,100 lbs498.952Manual override for quick, precise adjustments

5. Brandon Trax Glass Lifter

The Brandon Trax Glass Lifter is a reliable machine built for efficient material handling across industries like automotive, defence, aerospace, and construction.

Specifications of Brandon Trax Glass Lifter:

• Brandon Trax Glass Lifter is built especially for outdoor and uneven surfaces, as its all-terrain tracks and low ground pressure make it ideal for challenging job sites.
• The equipment features a three-axis manipulator with side-shift and suction lifters, offering better control.
• It also has advanced safety systems, including real-time monitoring and user-friendly prompts, which help reduce errors.

Model Name Working Height Working WeightTechnical Features Brandon Trax Glass Lifter24 Feet or 7.33m1400 LB or 500 KgElectric Joystick for Proportional Lift and Extend

6. Junior Mini Crane Glass Lifter

The Junior Mini Crane Glass Lifter, manufactured by Bailey Crane, is a compact solution for lifting glass and a variety of other materials, such as metal and concrete.

Specifications of Brandon Omni Glass Lifter:

• It has a vertical reach of 24 feet and a lifting capacity of 1,000 pounds, thus offering more reach than many competitors.
• Its 3-axis manipulator and suction cup attachment provide excellent precision and control.
• Some of its advanced safety features include real-time monitoring and clear user prompts, which help prevent errors and support safe operation.

Model Name Working Height Working WeightTechnical Features Junior Mini Crane Glass Lifter24 Feet or 7.33m1000 LB or 500KgRear Wheel Hydraulic Drive with Joystick and Speed Dial for precise control

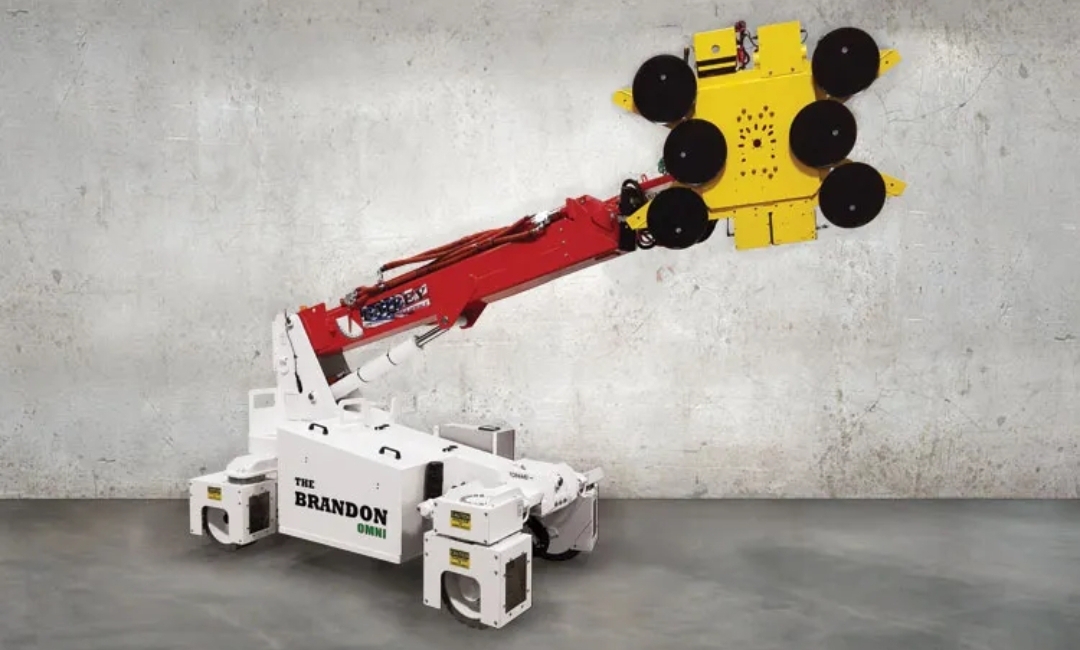

7. Brandon Omni Glass Lifter

The Brandon Omni Glass Lifter by Bailey Cranes is an advanced and safe machine used for lifting heavy glass and other materials.

Specifications of Brandon Omni Glass Lifter:

• It has glass lifting suction cups with a 3-axis manipulator for precise handling.
• Brandon Omni Glass Lifter provides multi-directional steering, allowing it to move sideways, rotate in place, and drive like a regular vehicle, giving workers better control.
• It is built with proactive safety features, including continuous monitoring of lifting operations and alerts to users for potential issues evolving.

Model Name Working Height Working WeightTechnical Features Brandon Omni Glass Lifter27 Feet or 8.23m1100 LB or 2500 KgThe rated load limiter detects attachment and adjusts load parameters.

8. Brandon Omni 10 Glass Lifter

The Brandon Omni 10 Glass Lifter is a powerful material-handling machine designed to meet the needs of various industries.

Specifications of Brandon Omni 10 Glass Lifter:

• It is equipped with a glass suction cup attachment and 3a-axis manipulator and can lift glass as well as other materials.
• It has advanced technology like multi-directional steering, which allows smooth sideways movement, centre rotation, and standard drive for excellent control in tight spaces.
• It is powered by an onboard dual 110V AC or an optional external 480V 3-phase system that helps in efficient lifting on a wide range of job sites.

Model Name Working Height Working WeightTechnical Features Brandon Omni 10 Glass Lifter37 Feet or 11.278M1100 LB or 499 KgThe rated load limiter detects attachment and adjusts load parameters.

9. Brandon Mini Crane

The Brandon Mini Crane by Bailey Cranes is a compact tool for safe and efficient glass lifting, ideal for a wide range of industries.

Specifications of Brandon Mini Crane:

• Its 24-volt battery-powered unit features a rear wheel electric motor and a precise side-shift system, allowing operators to move glass sideways with accuracy.
• Its advanced Woods Power Grip system ensures secure handling.
• Brandon Mini Crane can also move with a tight steering angle and adjust based on boom height, which helps maintain safe and stable operation.

Model Name Working Height Working WeightTechnical Brandon Mini Crane9 Feet or 2.75m700 LB or 317 KgSteering angle to help drive slowly with a tight radius

10. The Flipper Mini Crane

The Flipper Mini Crane is a specialized glass handling tool designed to improve safety and efficiency.

Specifications of the Flipper Mini Crane:

• It can place glass panels on a table and flip them for easy access to both sides, all within just 45 inches between the glass and the floor.
• This allows workers to inspect, adjust, or work on frames comfortably and efficiently.
• Its precise side-shift feature, powered by an electric actuator connected to the front axle, enables smooth lateral movement.

Model Name Working Height Working WeightTechnical Flipper Mini Crane9 Feet or 2.75m700 LB or 317 KgThe side-shift feature enables the operator to move the glass or window sideways

Conclusion

Thus, glass lifting machines play a vital role in ensuring that delicate materials like glass can be moved, positioned, and installed safely across a range of industries. Whether it’s for construction, aerospace, automotive, or interior design, having the right equipment reduces risks, saves time, and protects the quality of the materials.

Bailey Cranes stands out in this field by offering a wide variety of reliable, high-performance solutions tailored to different industrial needs. Our commitment to safety and innovation has made us a trusted name in material handling. The different variants of Bailey Cranes’ glass lifting equipment reflect our commitment to quality, safety, and custom-engineered lifting solutions.

Each design of the machine is created thoughtfully, making it an ideal solution for handling delicate glass with care and precision.

Bailey Cranes has a wide selection of glass lifting equipment across many categories.

To learn more about our lifting solutions, contact Bailey Cranes at 262-710-4028 or email us at sales@baileycranes.com. We have an experienced team that will guide you in finding your ideal equipment.

‍
